PLMD::View2D< T, N, M > Class Template Reference

A not-owning view for accessing array witha 2D interface. More...

#include <View2D.h>

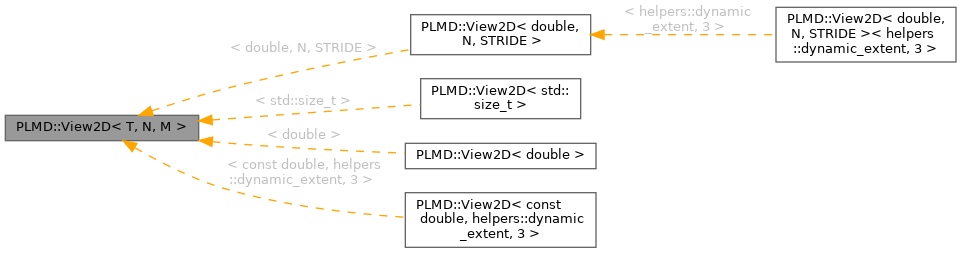

Inheritance diagram for PLMD::View2D< T, N, M >:

Public Types
using	const_iterator = const pointer
using	const_reference = const value_type&
using	element_type = View<value_type,M>
using	iterator = pointer
using	pointer = value_type*
using	reference = value_type&
using	value_type = T

Public Member Functions
	View2D (const View2D &) noexcept=default
template<size_t N_ = N, size_t M_ = M, typename = std::enable_if_t<N_ != helpers::dynamic_extent && M_ != helpers::dynamic_extent>>
	View2D (pointer p) noexcept
	constructor for fixed size View2D
template<size_t N_ = N, size_t M_ = M, typename = std::enable_if_t<N_ == helpers::dynamic_extent && M_ != helpers::dynamic_extent>>
	View2D (pointer p, size_t NN) noexcept
	constructor for a View2D with known second dimension at compile time
template<size_t N_ = N, size_t M_ = M, typename = std::enable_if_t<N_ == helpers::dynamic_extent && M_ == helpers::dynamic_extent>>
	View2D (pointer p, size_t NN, size_t MM) noexcept
	constructor for a View2D with all dimension known at run time
	View2D (View2D &&) noexcept=default
constexpr pointer	data () const noexcept
	return the pointer to the data
View2D &	operator= (const View2D &) noexcept=default
View2D &	operator= (View2D &&) noexcept=default
constexpr const element_type	operator[] (size_t i) const noexcept
	returns the reference i-th element
constexpr element_type	operator[] (size_t i) noexcept
	returns the View to the i-th row
constexpr size_t	size () const noexcept
	returns the size of the first dimension

Private Attributes
pointer	ptr_
std::size_t	sizeM_ {M}
std::size_t	sizeN_ {N}

Detailed Description

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>
class PLMD::View2D< T, N, M >

A not-owning view for accessing array witha 2D interface.

The main idea is to have something that works like the mdspan from c++23.

Views are CHEAP to copy (pointer and an integer), so it is better to pass them as values

Todo

ctors from std::array and from iterators to parallel the span implementatio

Member Typedef Documentation

const_iterator

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

using PLMD::View2D< T, N, M >::const_iterator = const pointer

const_reference

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

using PLMD::View2D< T, N, M >::const_reference = const value_type&

element_type

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

using PLMD::View2D< T, N, M >::element_type = View<value_type,M>

iterator

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

using PLMD::View2D< T, N, M >::iterator = pointer

pointer

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

using PLMD::View2D< T, N, M >::pointer = value_type*

reference

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

using PLMD::View2D< T, N, M >::reference = value_type&

value_type

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

using PLMD::View2D< T, N, M >::value_type = T

Constructor & Destructor Documentation

View2D() [1/5]

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

template<size_t N_ = N, size_t M_ = M, typename = std::enable_if_t<N_ != helpers::dynamic_extent && M_ != helpers::dynamic_extent>>

PLMD::View2D< T, N, M >::View2D ( pointer p )

inlineexplicitnoexcept

constructor for fixed size View2D

View2D() [2/5]

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

template<size_t N_ = N, size_t M_ = M, typename = std::enable_if_t<N_ == helpers::dynamic_extent && M_ != helpers::dynamic_extent>>

PLMD::View2D< T, N, M >::View2D ( pointer p, size_t NN )

inlinenoexcept

constructor for a View2D with known second dimension at compile time

View2D() [3/5]

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

template<size_t N_ = N, size_t M_ = M, typename = std::enable_if_t<N_ == helpers::dynamic_extent && M_ == helpers::dynamic_extent>>

PLMD::View2D< T, N, M >::View2D ( pointer p, size_t NN, size_t MM )

inlinenoexcept

constructor for a View2D with all dimension known at run time

View2D() [4/5]

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

PLMD::View2D< T, N, M >::View2D ( const View2D< T, N, M > & )

defaultnoexcept

View2D() [5/5]

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

PLMD::View2D< T, N, M >::View2D ( View2D< T, N, M > && )

defaultnoexcept

Member Function Documentation

data()

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

pointer PLMD::View2D< T, N, M >::data ( ) const

inlineconstexprnoexcept

return the pointer to the data

operator=() [1/2]

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

View2D & PLMD::View2D< T, N, M >::operator= ( const View2D< T, N, M > & )

defaultnoexcept

operator=() [2/2]

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

View2D & PLMD::View2D< T, N, M >::operator= ( View2D< T, N, M > && )

defaultnoexcept

operator[]() [1/2]

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

const element_type PLMD::View2D< T, N, M >::operator[] ( size_t i ) const

inlineconstexprnoexcept

returns the reference i-th element

operator[]() [2/2]

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

element_type PLMD::View2D< T, N, M >::operator[] ( size_t i )

inlineconstexprnoexcept

returns the View to the i-th row

size()

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

size_t PLMD::View2D< T, N, M >::size ( ) const

inlineconstexprnoexcept

returns the size of the first dimension

Member Data Documentation

ptr_

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

pointer PLMD::View2D< T, N, M >::ptr_

private

sizeM_

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

std::size_t PLMD::View2D< T, N, M >::sizeM_ {M}

private

sizeN_

template<typename T, std::size_t N = helpers::dynamic_extent, std::size_t M = helpers::dynamic_extent>

std::size_t PLMD::View2D< T, N, M >::sizeN_ {N}

private

---

The documentation for this class was generated from the following file:

• tools/View2D.h
