This class stores a full matrix and allows one to do some simple matrix operations. More...

#include <Matrix.h>

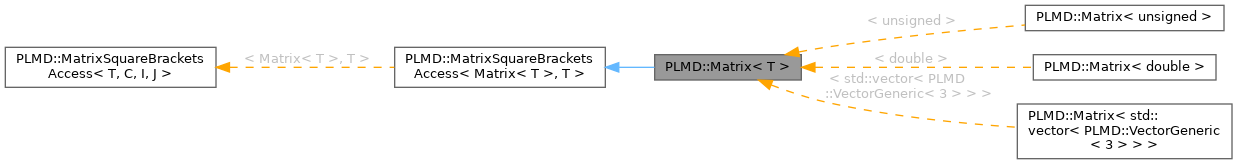

Inheritance diagram for PLMD::Matrix< T >:

[legend]

Public Member Functions
	Matrix (const Matrix< T > &t)

	Matrix (const unsigned nr=0, const unsigned nc=0)

std::vector< T > &	getVector ()
	Return the contents of the matrix as a vector of length rw*cl.

unsigned	isSymmetric () const
	Test if the matrix is symmetric or not.

unsigned	ncols () const
	Return the number of columns.

unsigned	nrows () const
	Return the number of rows.

T &	operator() (const unsigned &i, const unsigned &j)
	Return a referenre to element i,j of the matrix.

const T &	operator() (const unsigned &i, const unsigned &j) const
	Return element i,j of the matrix.

Matrix< T >	operator*= (const T &v)
	Multiply all elements by v.

Matrix< T > &	operator+= (const Matrix< T > &m)
	Matrix addition.

Matrix< T >	operator+= (const T &v)
	Add v to all elements of the Matrix.

Matrix< T > &	operator-= (const Matrix< T > &m)
	Matrix subtraction.

Matrix< T >	operator-= (const T &v)
	Subtract v from all elements of the Matrix.

Matrix< T > &	operator= (const Matrix< T > &m)
	Set the Matrix equal to another Matrix.

Matrix< T > &	operator= (const std::vector< T > &v)
	Set the Matrix equal to the value of a standard vector - used for readin.

Matrix< T > &	operator= (const T &v)
	Set all elements of the matrix equal to the value of v.

Row	operator[] (unsigned i)
	access element (with [][] syntax)

Const_row	operator[] (unsigned i) const
	access element (with [][] syntax)

void	resize (const unsigned nr, const unsigned nc)
	Resize the matrix.

void	setFromVector (const std::vector< T > &vecin)
	Set the matrix from a vector input.

Private Attributes
unsigned	cl
	Number of columns in matrix.

std::vector< T >	data
	The data in the matrix.

unsigned	rw
	Number of rows in matrix.

unsigned	sz
	Number of elements in matrix (nrows*ncols)

Friends
template<typename U>
void	chol_elsolve (const Matrix< U > &, const std::vector< U > &, std::vector< U > &)
	Solve a system of equations using the cholesky decomposition.

template<typename U>
void	cholesky (const Matrix< U > &, Matrix< U > &)
	Do a cholesky decomposition of a matrix.

template<typename U>
int	diagMat (const Matrix< U > &, std::vector< double > &, Matrix< double > &)
	Diagonalize a symmetric matrix - returns zero if diagonalization worked.

template<typename U>
int	Invert (const Matrix< U > &, Matrix< double > &)
	Invert a matrix (works for both symmetric and asymmetric matrices) - returns zero if sucesfull.

template<typename U>
int	logdet (const Matrix< U > &, double &)
	Calculate the logarithm of the determinant of a symmetric matrix - returns zero if succesfull.

template<typename U>
void	matrixOut (Log &, const Matrix< U > &)
	Output the Matrix in matrix form.

template<typename U>
void	mult (const Matrix< U > &, const Matrix< U > &, Matrix< U > &)
	Matrix matrix multiply.

template<typename U>
void	mult (const Matrix< U > &, const std::vector< U > &, std::vector< U > &)
	Matrix times a std::vector.

template<typename U>
void	mult (const std::vector< U > &, const Matrix< U > &, std::vector< U > &)
	std::vector times a Matrix

template<typename U>
Matrix< U >	operator* (U &, const Matrix< U > &)
	Multiply matrix by scalar.

template<typename U>
Log &	operator<< (Log &, const Matrix< U > &)
	Output the entire matrix on a single line.

template<typename U>
int	pseudoInvert (const Matrix< U > &, Matrix< double > &)
	Calculate the Moore-Penrose Pseudoinverse of a matrix.

template<typename U>
void	transpose (const Matrix< U > &, Matrix< U > &)
	Matrix transpose.

Detailed Description

template<typename T>
class PLMD::Matrix< T >

This class stores a full matrix and allows one to do some simple matrix operations.

Constructor & Destructor Documentation

◆ Matrix() [1/2]

template<typename T>

PLMD::Matrix< T >::Matrix	(	const unsigned	nr = 0,
		const unsigned	nc = 0 )

inlineexplicit

◆ Matrix() [2/2]

template<typename T>

PLMD::Matrix< T >::Matrix ( const Matrix< T > & t )

inline

Member Function Documentation

◆ getVector()

template<typename T>

std::vector< T > & PLMD::Matrix< T >::getVector ( )

inline

Return the contents of the matrix as a vector of length rw*cl.

◆ isSymmetric()

template<typename T>

unsigned PLMD::Matrix< T >::isSymmetric ( ) const

inline

Test if the matrix is symmetric or not.

◆ ncols()

template<typename T>

unsigned PLMD::Matrix< T >::ncols ( ) const

inline

Return the number of columns.

◆ nrows()

template<typename T>

unsigned PLMD::Matrix< T >::nrows ( ) const

inline

Return the number of rows.

◆ operator()() [1/2]

template<typename T>

T & PLMD::Matrix< T >::operator()	(	const unsigned &	i,
		const unsigned &	j )

inline

Return a referenre to element i,j of the matrix.

◆ operator()() [2/2]

template<typename T>

const T & PLMD::Matrix< T >::operator()	(	const unsigned &	i,
		const unsigned &	j ) const

inline

Return element i,j of the matrix.

◆ operator*=()

template<typename T>

Matrix< T > PLMD::Matrix< T >::operator*= ( const T & v )

inline

Multiply all elements by v.

◆ operator+=() [1/2]

template<typename T>

Matrix< T > & PLMD::Matrix< T >::operator+= ( const Matrix< T > & m )

inline

Matrix addition.

◆ operator+=() [2/2]

template<typename T>

Matrix< T > PLMD::Matrix< T >::operator+= ( const T & v )

inline

Add v to all elements of the Matrix.

◆ operator-=() [1/2]

template<typename T>

Matrix< T > & PLMD::Matrix< T >::operator-= ( const Matrix< T > & m )

inline

Matrix subtraction.

◆ operator-=() [2/2]

template<typename T>

Matrix< T > PLMD::Matrix< T >::operator-= ( const T & v )

inline

Subtract v from all elements of the Matrix.

◆ operator=() [1/3]

template<typename T>

Matrix< T > & PLMD::Matrix< T >::operator= ( const Matrix< T > & m )

inline

Set the Matrix equal to another Matrix.

◆ operator=() [2/3]

template<typename T>

Matrix< T > & PLMD::Matrix< T >::operator= ( const std::vector< T > & v )

inline

Set the Matrix equal to the value of a standard vector - used for readin.

◆ operator=() [3/3]

template<typename T>

Matrix< T > & PLMD::Matrix< T >::operator= ( const T & v )

inline

Set all elements of the matrix equal to the value of v.

◆ operator[]() [1/2]

MatrixSquareBracketsAccess< T, T, unsigned, unsigned >::Row PLMD::MatrixSquareBracketsAccess< T, T, unsigned, unsigned >::operator[] ( unsigned i )

inherited

access element (with [][] syntax)

◆ operator[]() [2/2]

MatrixSquareBracketsAccess< T, T, unsigned, unsigned >::Const_row PLMD::MatrixSquareBracketsAccess< T, T, unsigned, unsigned >::operator[] ( unsigned i ) const

inherited

access element (with [][] syntax)

◆ resize()

template<typename T>

void PLMD::Matrix< T >::resize	(	const unsigned	nr,
		const unsigned	nc )

inline

Resize the matrix.

◆ setFromVector()

template<typename T>

void PLMD::Matrix< T >::setFromVector ( const std::vector< T > & vecin )

inline

Set the matrix from a vector input.

Friends And Related Symbol Documentation

◆ chol_elsolve

template<typename T>

template<typename U>

void chol_elsolve	(	const Matrix< U > &	,
		const std::vector< U > &	,
		std::vector< U > &	)

friend

Solve a system of equations using the cholesky decomposition.

◆ cholesky

template<typename T>

template<typename U>

void cholesky	(	const Matrix< U > &	,
		Matrix< U > &	)

friend

Do a cholesky decomposition of a matrix.

◆ diagMat

template<typename T>

template<typename U>

int diagMat	(	const Matrix< U > &	,
		std::vector< double > &	,
		Matrix< double > &	)

friend

Diagonalize a symmetric matrix - returns zero if diagonalization worked.

◆ Invert

template<typename T>

template<typename U>

int Invert	(	const Matrix< U > &	,
		Matrix< double > &	)

friend

Invert a matrix (works for both symmetric and asymmetric matrices) - returns zero if sucesfull.

◆ logdet

template<typename T>

template<typename U>

int logdet	(	const Matrix< U > &	,
		double &	)

friend

Calculate the logarithm of the determinant of a symmetric matrix - returns zero if succesfull.

◆ matrixOut

template<typename T>

template<typename U>

void matrixOut	(	Log &	,
		const Matrix< U > &	)

friend

Output the Matrix in matrix form.

◆ mult [1/3]

template<typename T>

template<typename U>

void mult	(	const Matrix< U > &	,
		const Matrix< U > &	,
		Matrix< U > &	)

friend

Matrix matrix multiply.

◆ mult [2/3]

template<typename T>

template<typename U>

void mult	(	const Matrix< U > &	,
		const std::vector< U > &	,
		std::vector< U > &	)

friend

Matrix times a std::vector.

◆ mult [3/3]

template<typename T>

template<typename U>

void mult	(	const std::vector< U > &	,
		const Matrix< U > &	,
		std::vector< U > &	)

friend

std::vector times a Matrix

◆ operator*

template<typename T>

template<typename U>

Matrix< U > operator*	(	U &	,
		const Matrix< U > &	)

friend

Multiply matrix by scalar.

◆ operator<<

template<typename T>

template<typename U>

Log & operator<<	(	Log &	,
		const Matrix< U > &	)

friend

Output the entire matrix on a single line.

◆ pseudoInvert

template<typename T>

template<typename U>

int pseudoInvert	(	const Matrix< U > &	,
		Matrix< double > &	)

friend

Calculate the Moore-Penrose Pseudoinverse of a matrix.

◆ transpose

template<typename T>

template<typename U>

void transpose	(	const Matrix< U > &	,
		Matrix< U > &	)

friend

Matrix transpose.

Member Data Documentation

◆ cl

template<typename T>

unsigned PLMD::Matrix< T >::cl

private

Number of columns in matrix.

◆ data

template<typename T>

std::vector<T> PLMD::Matrix< T >::data

private

The data in the matrix.

◆ rw

template<typename T>

unsigned PLMD::Matrix< T >::rw

private

Number of rows in matrix.

◆ sz

template<typename T>

unsigned PLMD::Matrix< T >::sz

private

Number of elements in matrix (nrows*ncols)

The documentation for this class was generated from the following file:

tools/Matrix.h
