PLMD::switchContainers::baseSwitch Class Reference

container for the actual switching function used by PLMD::SwitchingFunction More...

#include <SwitchingFunction.h>

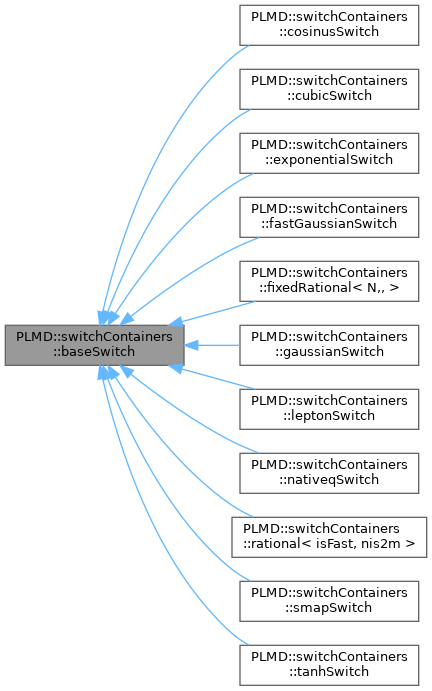

Inheritance diagram for PLMD::switchContainers::baseSwitch:

Public Member Functions
	baseSwitch (double D0, double DMAX, double R0, std::string_view name)
virtual	~baseSwitch ()
virtual double	calculate (double distance, double &dfunc) const
	the driver for the function (prepares rdist or returns 1 or 0 automatically)
virtual double	calculateSqr (double distance2, double &dfunc) const
std::string	description () const
double	get_d0 () const
double	get_dmax () const
double	get_dmax2 () const
double	get_r0 () const
void	removeStretch ()
void	setupStretch ()

Protected Member Functions
virtual double	function (double rdist, double &dfunc) const =0
virtual std::string	specificDescription () const

Protected Attributes
double	d0 =0.0
	Minimum distance (before this, function is one)
double	dmax =0.0
	Maximum distance (after this, function is zero)
double	dmax_2 =0.0
	Square of dmax, useful in calculateSqr()
double	invr0 =0.0
	We store the inverse to avoid a division.
double	invr0_2 =0.0
	Square of invr0, useful in calculateSqr()
std::string	mytype
double	shift =0.0
double	stretch =1.0
	Parameters for stretching the function to zero at d_max.

Detailed Description

container for the actual switching function used by PLMD::SwitchingFunction

Constructor & Destructor Documentation

baseSwitch()

PLMD::switchContainers::baseSwitch::baseSwitch	(	double	D0,
		double	DMAX,
		double	R0,
		std::string_view	name )

~baseSwitch()

PLMD::switchContainers::baseSwitch::~baseSwitch ( )

virtualdefault

Member Function Documentation

calculate()

double PLMD::switchContainers::baseSwitch::calculate ( double distance, double & dfunc ) const

virtual

the driver for the function (prepares rdist or returns 1 or 0 automatically)

Reimplemented in PLMD::switchContainers::leptonSwitch, and PLMD::switchContainers::nativeqSwitch.

calculateSqr()

double PLMD::switchContainers::baseSwitch::calculateSqr ( double distance2, double & dfunc ) const

virtual

Reimplemented in PLMD::switchContainers::fastGaussianSwitch, PLMD::switchContainers::fixedRational< N,, >, PLMD::switchContainers::leptonSwitch, and PLMD::switchContainers::rational< isFast, nis2m >.

description()

std::string PLMD::switchContainers::baseSwitch::description

(

)

const

function()

virtual double PLMD::switchContainers::baseSwitch::function ( double rdist, double & dfunc ) const

protectedpure virtual

Implemented in PLMD::switchContainers::cosinusSwitch, PLMD::switchContainers::cubicSwitch, PLMD::switchContainers::exponentialSwitch, PLMD::switchContainers::fastGaussianSwitch, PLMD::switchContainers::fixedRational< N,, >, PLMD::switchContainers::gaussianSwitch, PLMD::switchContainers::leptonSwitch, PLMD::switchContainers::nativeqSwitch, PLMD::switchContainers::rational< isFast, nis2m >, PLMD::switchContainers::smapSwitch, and PLMD::switchContainers::tanhSwitch.

get_d0()

double PLMD::switchContainers::baseSwitch::get_d0

(

)

const

get_dmax()

double PLMD::switchContainers::baseSwitch::get_dmax

(

)

const

get_dmax2()

double PLMD::switchContainers::baseSwitch::get_dmax2

(

)

const

get_r0()

double PLMD::switchContainers::baseSwitch::get_r0

(

)

const

removeStretch()

void PLMD::switchContainers::baseSwitch::removeStretch

(

)

setupStretch()

void PLMD::switchContainers::baseSwitch::setupStretch

(

)

specificDescription()

std::string PLMD::switchContainers::baseSwitch::specificDescription ( ) const

protectedvirtual

Reimplemented in PLMD::switchContainers::cubicSwitch, PLMD::switchContainers::fixedRational< N,, >, PLMD::switchContainers::leptonSwitch, PLMD::switchContainers::nativeqSwitch, PLMD::switchContainers::rational< isFast, nis2m >, and PLMD::switchContainers::smapSwitch.

Member Data Documentation

d0

double PLMD::switchContainers::baseSwitch::d0 =0.0

protected

Minimum distance (before this, function is one)

dmax

double PLMD::switchContainers::baseSwitch::dmax =0.0

protected

Maximum distance (after this, function is zero)

dmax_2

double PLMD::switchContainers::baseSwitch::dmax_2 =0.0

protected

Square of dmax, useful in calculateSqr()

invr0

double PLMD::switchContainers::baseSwitch::invr0 =0.0

protected

We store the inverse to avoid a division.

invr0_2

double PLMD::switchContainers::baseSwitch::invr0_2 =0.0

protected

Square of invr0, useful in calculateSqr()

mytype

std::string PLMD::switchContainers::baseSwitch::mytype

protected

shift

double PLMD::switchContainers::baseSwitch::shift =0.0

protected

stretch

double PLMD::switchContainers::baseSwitch::stretch =1.0

protected

Parameters for stretching the function to zero at d_max.

---

The documentation for this class was generated from the following files:

• tools/SwitchingFunction.h
• tools/SwitchingFunction.cpp
