#include <GridVessel.h>

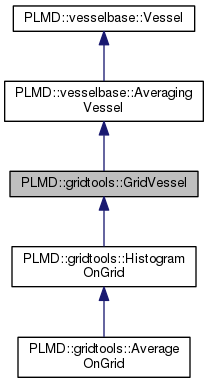

Inheritance diagram for PLMD::gridtools::GridVessel:

[legend]

Public Member Functions
	GridVessel (const vesselbase::VesselOptions &)
	Constructor. More...

void	setNoDerivatives ()
	Remove the derivatives. More...

virtual void	setBounds (const std::vector< std::string > &smin, const std::vector< std::string > &smax, const std::vector< unsigned > &nbins, const std::vector< double > &spacing)
	Set the minimum and maximum of the grid. More...

std::string	description ()
	Get a description of the grid to output to the log. More...

void	convertIndexToIndices (const unsigned &index, const std::vector< unsigned > &nnbin, std::vector< unsigned > &indices) const
	Convert an index into indices. More...

unsigned	getIndex (const std::vector< unsigned > &indices) const
	Flatten the grid and get the grid index for a point. More...

void	getIndices (const unsigned &index, std::vector< unsigned > &indices) const
	Get the indices fof a point. More...

void	getIndices (const std::vector< double > &point, std::vector< unsigned > &indices) const
	Get the indices of a particular point. More...

void	setGridElement (const unsigned &, const unsigned &, const double &)
	Operations on one of the elements of grid point i. More...

void	addToGridElement (const unsigned &ipoint, const unsigned &jelement, const double &value)
	Add data to an element of the grid. More...

double	getGridElement (const std::vector< unsigned > &, const unsigned &) const
	Operations on one of the elements of grid point specified by vector. More...

void	setGridElement (const std::vector< unsigned > &, const unsigned &, const double &)

virtual void	resize ()
	Set the size of the buffer equal to nper*npoints. More...

unsigned	getNumberOfPoints () const
	Get the number of points in the grid. More...

void	getGridPointCoordinates (const unsigned &, std::vector< double > &) const
	Get the coordinates for a point in the grid. More...

unsigned	getDimension () const
	Get the dimensionality of the function. More...

virtual unsigned	getNumberOfComponents () const
	Get the number of components in the vector stored on each grid point. More...

bool	isPeriodic (const unsigned &i) const
	Is the grid periodic in the ith direction. More...

unsigned	getNumberOfQuantities () const
	Get the number of quantities we have stored at each grid point. More...

std::vector< unsigned >	getNbin () const
	Get the number of grid points for each dimension. More...

std::string	getComponentName (const unsigned &i) const
	Get the name of the ith component. More...

std::vector< std::string >	getMin () const
	Get the vector containing the minimum value of the grid in each dimension. More...

std::vector< std::string >	getMax () const
	Get the vector containing the maximum value of the grid in each dimension. More...

virtual unsigned	getNumberOfBufferPoints () const
	Get the number of points needed in the buffer. More...

const std::vector< unsigned > &	getStride () const
	Get the stride (the distance between the grid points of an index) More...

double	getCellVolume () const
	Return the volume of one of the grid cells. More...

virtual double	getGridElement (const unsigned &, const unsigned &) const
	Get the value of the ith grid element. More...

void	getNeighbors (const std::vector< double > &pp, const std::vector< unsigned > &nneigh, unsigned &num_neighbours, std::vector< unsigned > &neighbors) const
	Get the set of points neighouring a particular location in space. More...

void	getNeighbors (const std::vector< unsigned > &indices, const std::vector< unsigned > &nneigh, unsigned &num_neighbors, std::vector< unsigned > &neighbors) const
	Get the neighbors for a set of indices of a point. More...

void	getSplineNeighbors (const unsigned &mybox, std::vector< unsigned > &mysneigh) const
	Get the points neighboring a particular spline point. More...

const std::vector< double > &	getGridSpacing () const
	Get the spacing between grid points. More...

double	getGridExtent (const unsigned &i) const
	Get the extent of the grid in one of the axis. More...

virtual void	calculate (const unsigned &current, MultiValue &myvals, std::vector< double > &buffer, std::vector< unsigned > &der_list) const
	Copy data from the action into the grid. More...

void	setCubeUnits (const double &units)
	This ensures that Gaussian cube fies are in correct units. More...

double	getCubeUnits () const
	This ensures that Gaussian cube files are in correct units. More...

std::string	getInputString () const
	Return a string containing the input to the grid so we can clone it. More...

bool	noDerivatives () const
	Does this have derivatives. More...

double	getValueAndDerivatives (const std::vector< double > &x, const unsigned &ind, std::vector< double > &der) const
	Get the value and derivatives at a particular location using spline interpolation. More...

void	activateThesePoints (const std::vector< bool > &to_activate)
	Deactivate all the grid points. More...

bool	inactive (const unsigned &ip) const
	Is this point active. More...

virtual void	finish (const std::vector< double > &)
	Copy data from an accumulated buffer into the grid. More...

bool	wasreset () const
	Was the grid cleared on the last step. More...

virtual void	clear ()
	Clear all the data stored on the grid. More...

virtual void	reset ()
	Reset the grid so that it is cleared at start of next time it is calculated. More...

void	setNorm (const double &snorm)
	Functions for dealing with normalisation constant. More...

double	getNorm () const

bool	applyForce (std::vector< double > &forces)
	Retrieve the forces on the quantities in the vessel. More...

std::string	getName () const
	Return the name. More...

std::string	getLabel () const
	Return the label. More...

void	checkRead ()
	Check that readin was fine. More...

virtual void	setBufferStart (unsigned &start)
	Set the start of the buffer. More...

virtual void	prepare ()
	Do something before the loop. More...

virtual MultiValue &	transformDerivatives (const unsigned &current, MultiValue &myvals, MultiValue &bvals)
	This is replaced in bridges so we can transform the derivatives. More...

Static Public Member Functions
static void	registerKeywords (Keywords &keys)
	keywords More...

static std::string	transformName (const std::string &name)
	Convert the name to the label of the component. More...

Public Attributes
Log &	log
	Reference to the log on which to output details. More...

Protected Member Functions
unsigned	getIndex (const std::vector< double > &p) const
	Convert a point in space the the correspoinding grid point. More...

void	setDataSize (const unsigned &size)
	Set the size of the data vector. More...

void	setDataElement (const unsigned &myelem, const double &value)
	Set an element of the data array. More...

void	addDataElement (const unsigned &myelem, const double &value)
	Add some value to an element of the data array. More...

double	getDataElement (const unsigned &myelem) const
	Get the value of one of the data element. More...

bool	noAverage () const
	Are we averaging the data. More...

int	getNumericalLabel () const
	Return the numerical label. More...

void	error (const std::string &errmsg)
	Report an error. More...

template<class T >
void	parse (const std::string &key, T &t)
	Parse something from the input. More...

template<class T >
void	parseVector (const std::string &key, std::vector< T > &t)
	Parse one keyword as std::vector. More...

void	parseFlag (const std::string &key, bool &t)
	Parse one keyword as boolean flag. More...

std::string	getAllInput ()
	This returns the whole input line (it is used for less_than/more_than/between) More...

ActionWithVessel *	getAction () const
	Return a pointer to the action we are working in. More...

double	getTolerance () const
	Return the value of the tolerance. More...

double	getNLTolerance () const
	Return the value of the neighbor list tolerance. More...

void	resizeBuffer (const unsigned &n)
	Set the size of the data buffer. More...

Protected Attributes
bool	noderiv
	Do we have derivatives. More...

std::vector< std::string >	arg_names
	The names of the various columns in the grid file. More...

unsigned	nper
	The number of pieces of information we are storing for each point in the grid. More...

std::vector< bool >	pbc
	Is this direction periodic. More...

std::vector< std::string >	str_min
	The minimum and maximum in the grid stored as strings. More...

std::vector< std::string >	str_max

std::vector< double >	dx
	The spacing between grid points. More...

unsigned	dimension
	The dimensionality of the grid. More...

std::vector< bool >	active
	Which grid points are we actively accumulating. More...

unsigned	bufstart
	The start of this Vessel's buffer in buffer in the underlying ActionWithVessel. More...

Communicator &	comm
	A copy of the communicator. More...

Private Attributes
bool	bounds_set
	Have the minimum and maximum for the grid been set. More...

unsigned	npoints
	The number of points in the grid. More...

double	cube_units
	Units for Gaussian Cube file. More...

bool	foundprint
	This flag is used to check if the user has created a valid input. More...

std::vector< double >	min
	The minimum and maximum of the grid stored as doubles. More...

std::vector< double >	max

std::vector< unsigned >	stride
	The numerical distance between adjacent grid points. More...

std::vector< unsigned >	nbin
	The number of bins in each grid direction. More...

unsigned	currentGridPoint
	The grid point that was requested last by getGridPointCoordinates. More...

Friends
class	ActionWithInputGrid

class	DumpGrid

Constructor & Destructor Documentation

◆ GridVessel()

PLMD::gridtools::GridVessel::GridVessel ( const vesselbase::VesselOptions & da )

explicit

Constructor.

Member Function Documentation

◆ activateThesePoints()

void PLMD::gridtools::GridVessel::activateThesePoints ( const std::vector< bool > & to_activate )

Deactivate all the grid points.

◆ addDataElement()

void PLMD::vesselbase::AveragingVessel::addDataElement	(	const unsigned &	myelem,
		const double &	value
	)

inlineprotectedinherited

Add some value to an element of the data array.

◆ addToGridElement()

void PLMD::gridtools::GridVessel::addToGridElement	(	const unsigned &	ipoint,
		const unsigned &	jelement,
		const double &	value
	)

Add data to an element of the grid.

◆ applyForce()

bool PLMD::vesselbase::AveragingVessel::applyForce ( std::vector< double > & forces )

inlinevirtualinherited

Retrieve the forces on the quantities in the vessel.

Implements PLMD::vesselbase::Vessel.

◆ calculate()

void PLMD::gridtools::GridVessel::calculate	(	const unsigned &	current,
		MultiValue &	myvals,
		std::vector< double > &	buffer,
		std::vector< unsigned > &	der_list
	)		const

virtual

Copy data from the action into the grid.

Implements PLMD::vesselbase::Vessel.

Reimplemented in PLMD::gridtools::HistogramOnGrid.

◆ checkRead()

void PLMD::vesselbase::Vessel::checkRead ( )

inherited

Check that readin was fine.

◆ clear()

void PLMD::vesselbase::AveragingVessel::clear ( )

virtualinherited

Clear all the data stored on the grid.

◆ convertIndexToIndices()

void PLMD::gridtools::GridVessel::convertIndexToIndices	(	const unsigned &	index,
		const std::vector< unsigned > &	nnbin,
		std::vector< unsigned > &	indices
	)		const

Convert an index into indices.

◆ description()

std::string PLMD::gridtools::GridVessel::description ( )

virtual

Get a description of the grid to output to the log.

Implements PLMD::vesselbase::Vessel.

◆ error()

void PLMD::vesselbase::Vessel::error ( const std::string & errmsg )

protectedinherited

Report an error.

◆ finish()

void PLMD::vesselbase::AveragingVessel::finish ( const std::vector< double > & buffer )

virtualinherited

Copy data from an accumulated buffer into the grid.

Implements PLMD::vesselbase::Vessel.

Reimplemented in PLMD::gridtools::HistogramOnGrid.

◆ getAction()

ActionWithVessel * PLMD::vesselbase::Vessel::getAction ( ) const

inlineprotectedinherited

Return a pointer to the action we are working in.

◆ getAllInput()

std::string PLMD::vesselbase::Vessel::getAllInput ( )

protectedinherited

This returns the whole input line (it is used for less_than/more_than/between)

◆ getCellVolume()

double PLMD::gridtools::GridVessel::getCellVolume ( ) const

inline

Return the volume of one of the grid cells.

◆ getComponentName()

std::string PLMD::gridtools::GridVessel::getComponentName ( const unsigned & i ) const

inline

Get the name of the ith component.

◆ getCubeUnits()

double PLMD::gridtools::GridVessel::getCubeUnits ( ) const

This ensures that Gaussian cube files are in correct units.

◆ getDataElement()

double PLMD::vesselbase::AveragingVessel::getDataElement ( const unsigned & myelem ) const

inlineprotectedinherited

Get the value of one of the data element.

◆ getDimension()

unsigned PLMD::gridtools::GridVessel::getDimension ( ) const

inline

Get the dimensionality of the function.

◆ getGridElement() [1/2]

double PLMD::gridtools::GridVessel::getGridElement	(	const std::vector< unsigned > &	indices,
		const unsigned &	jelement
	)		const

Operations on one of the elements of grid point specified by vector.

◆ getGridElement() [2/2]

double PLMD::gridtools::GridVessel::getGridElement	(	const unsigned &	ipoint,
		const unsigned &	jelement
	)		const

virtual

Get the value of the ith grid element.

Reimplemented in PLMD::gridtools::AverageOnGrid.

◆ getGridExtent()

double PLMD::gridtools::GridVessel::getGridExtent ( const unsigned & i ) const

inline

Get the extent of the grid in one of the axis.

◆ getGridPointCoordinates()

void PLMD::gridtools::GridVessel::getGridPointCoordinates	(	const unsigned &	ipoint,
		std::vector< double > &	x
	)		const

Get the coordinates for a point in the grid.

◆ getGridSpacing()

const std::vector< double > & PLMD::gridtools::GridVessel::getGridSpacing ( ) const

inline

Get the spacing between grid points.

◆ getIndex() [1/2]

unsigned PLMD::gridtools::GridVessel::getIndex ( const std::vector< double > & p ) const

protected

Convert a point in space the the correspoinding grid point.

◆ getIndex() [2/2]

unsigned PLMD::gridtools::GridVessel::getIndex ( const std::vector< unsigned > & indices ) const

Flatten the grid and get the grid index for a point.

◆ getIndices() [1/2]

void PLMD::gridtools::GridVessel::getIndices	(	const unsigned &	index,
		std::vector< unsigned > &	indices
	)		const

Get the indices fof a point.

◆ getIndices() [2/2]

void PLMD::gridtools::GridVessel::getIndices	(	const std::vector< double > &	point,
		std::vector< unsigned > &	indices
	)		const

Get the indices of a particular point.

◆ getInputString()

std::string PLMD::gridtools::GridVessel::getInputString ( ) const

Return a string containing the input to the grid so we can clone it.

◆ getLabel()

std::string PLMD::vesselbase::Vessel::getLabel ( ) const

inherited

Return the label.

◆ getMax()

std::vector< std::string > PLMD::gridtools::GridVessel::getMax ( ) const

Get the vector containing the maximum value of the grid in each dimension.

◆ getMin()

std::vector< std::string > PLMD::gridtools::GridVessel::getMin ( ) const

Get the vector containing the minimum value of the grid in each dimension.

◆ getName()

std::string PLMD::vesselbase::Vessel::getName ( ) const

inherited

Return the name.

◆ getNbin()

std::vector< unsigned > PLMD::gridtools::GridVessel::getNbin ( ) const

Get the number of grid points for each dimension.

◆ getNeighbors() [1/2]

void PLMD::gridtools::GridVessel::getNeighbors	(	const std::vector< double > &	pp,
		const std::vector< unsigned > &	nneigh,
		unsigned &	num_neighbours,
		std::vector< unsigned > &	neighbors
	)		const

Get the set of points neighouring a particular location in space.

◆ getNeighbors() [2/2]

void PLMD::gridtools::GridVessel::getNeighbors	(	const std::vector< unsigned > &	indices,
		const std::vector< unsigned > &	nneigh,
		unsigned &	num_neighbors,
		std::vector< unsigned > &	neighbors
	)		const

Get the neighbors for a set of indices of a point.

◆ getNLTolerance()

double PLMD::vesselbase::Vessel::getNLTolerance ( ) const

inlineprotectedinherited

Return the value of the neighbor list tolerance.

◆ getNorm()

double PLMD::vesselbase::AveragingVessel::getNorm ( ) const

inlineinherited

◆ getNumberOfBufferPoints()

unsigned PLMD::gridtools::GridVessel::getNumberOfBufferPoints ( ) const

inlinevirtual

Get the number of points needed in the buffer.

Reimplemented in PLMD::gridtools::HistogramOnGrid.

◆ getNumberOfComponents()

unsigned PLMD::gridtools::GridVessel::getNumberOfComponents ( ) const

inlinevirtual

Get the number of components in the vector stored on each grid point.

Reimplemented in PLMD::gridtools::AverageOnGrid.

◆ getNumberOfPoints()

unsigned PLMD::gridtools::GridVessel::getNumberOfPoints ( ) const

inline

Get the number of points in the grid.

◆ getNumberOfQuantities()

unsigned PLMD::gridtools::GridVessel::getNumberOfQuantities ( ) const

inline

Get the number of quantities we have stored at each grid point.

◆ getNumericalLabel()

int PLMD::vesselbase::Vessel::getNumericalLabel ( ) const

inlineprotectedinherited

Return the numerical label.

◆ getSplineNeighbors()

void PLMD::gridtools::GridVessel::getSplineNeighbors	(	const unsigned &	mybox,
		std::vector< unsigned > &	mysneigh
	)		const

Get the points neighboring a particular spline point.

◆ getStride()

const std::vector< unsigned > & PLMD::gridtools::GridVessel::getStride ( ) const

inline

Get the stride (the distance between the grid points of an index)

◆ getTolerance()

double PLMD::vesselbase::Vessel::getTolerance ( ) const

inlineprotectedinherited

Return the value of the tolerance.

◆ getValueAndDerivatives()

double PLMD::gridtools::GridVessel::getValueAndDerivatives	(	const std::vector< double > &	x,
		const unsigned &	ind,
		std::vector< double > &	der
	)		const

Get the value and derivatives at a particular location using spline interpolation.

◆ inactive()

bool PLMD::gridtools::GridVessel::inactive ( const unsigned & ip ) const

inline

Is this point active.

◆ isPeriodic()

bool PLMD::gridtools::GridVessel::isPeriodic ( const unsigned & i ) const

inline

Is the grid periodic in the ith direction.

◆ noAverage()

bool PLMD::vesselbase::AveragingVessel::noAverage ( ) const

inlineprotectedinherited

Are we averaging the data.

◆ noDerivatives()

bool PLMD::gridtools::GridVessel::noDerivatives ( ) const

inline

Does this have derivatives.

◆ parse()

template<class T >

void PLMD::vesselbase::Vessel::parse	(	const std::string &	key,
		T &	t
	)

protectedinherited

Parse something from the input.

◆ parseFlag()

void PLMD::vesselbase::Vessel::parseFlag	(	const std::string &	key,
		bool &	t
	)

protectedinherited

Parse one keyword as boolean flag.

◆ parseVector()

template<class T >

void PLMD::vesselbase::Vessel::parseVector	(	const std::string &	key,
		std::vector< T > &	t
	)

protectedinherited

Parse one keyword as std::vector.

◆ prepare()

virtual void PLMD::vesselbase::Vessel::prepare ( )

inlinevirtualinherited

Do something before the loop.

Reimplemented in PLMD::vesselbase::BridgeVessel, and PLMD::mapping::SpathVessel.

◆ registerKeywords()

void PLMD::gridtools::GridVessel::registerKeywords ( Keywords & keys )

static

keywords

◆ reset()

void PLMD::vesselbase::AveragingVessel::reset ( )

virtualinherited

Reset the grid so that it is cleared at start of next time it is calculated.

◆ resize()

void PLMD::gridtools::GridVessel::resize ( )

virtual

Set the size of the buffer equal to nper*npoints.

Implements PLMD::vesselbase::Vessel.

◆ resizeBuffer()

void PLMD::vesselbase::Vessel::resizeBuffer ( const unsigned & n )

inlineprotectedinherited

Set the size of the data buffer.

◆ setBounds()

void PLMD::gridtools::GridVessel::setBounds	(	const std::vector< std::string > &	smin,
		const std::vector< std::string > &	smax,
		const std::vector< unsigned > &	nbins,
		const std::vector< double > &	spacing
	)

virtual

Set the minimum and maximum of the grid.

Reimplemented in PLMD::gridtools::HistogramOnGrid.

◆ setBufferStart()

void PLMD::vesselbase::Vessel::setBufferStart ( unsigned & start )

inlinevirtualinherited

Set the start of the buffer.

Reimplemented in PLMD::vesselbase::BridgeVessel.

◆ setCubeUnits()

void PLMD::gridtools::GridVessel::setCubeUnits ( const double & units )

This ensures that Gaussian cube fies are in correct units.

◆ setDataElement()

void PLMD::vesselbase::AveragingVessel::setDataElement	(	const unsigned &	myelem,
		const double &	value
	)

inlineprotectedinherited

Set an element of the data array.

◆ setDataSize()

void PLMD::vesselbase::AveragingVessel::setDataSize ( const unsigned & size )

protectedinherited

Set the size of the data vector.

◆ setGridElement() [1/2]

void PLMD::gridtools::GridVessel::setGridElement	(	const unsigned &	ipoint,
		const unsigned &	jelement,
		const double &	value
	)

Operations on one of the elements of grid point i.

◆ setGridElement() [2/2]

void PLMD::gridtools::GridVessel::setGridElement	(	const std::vector< unsigned > &	indices,
		const unsigned &	jelement,
		const double &	value
	)

◆ setNoDerivatives()

void PLMD::gridtools::GridVessel::setNoDerivatives ( )

Remove the derivatives.

◆ setNorm()

void PLMD::vesselbase::AveragingVessel::setNorm ( const double & snorm )

inlineinherited

Functions for dealing with normalisation constant.

◆ transformDerivatives()

MultiValue & PLMD::vesselbase::Vessel::transformDerivatives	(	const unsigned &	current,
		MultiValue &	myvals,
		MultiValue &	bvals
	)

inlinevirtualinherited

This is replaced in bridges so we can transform the derivatives.

Reimplemented in PLMD::vesselbase::BridgeVessel.

◆ transformName()

std::string PLMD::vesselbase::Vessel::transformName ( const std::string & name )

staticinherited

Convert the name to the label of the component.

◆ wasreset()

bool PLMD::vesselbase::AveragingVessel::wasreset ( ) const

inherited

Was the grid cleared on the last step.

Friends And Related Function Documentation

◆ ActionWithInputGrid

friend class ActionWithInputGrid

friend

◆ DumpGrid

friend class DumpGrid

friend

Member Data Documentation

◆ active

std::vector<bool> PLMD::gridtools::GridVessel::active

protected

Which grid points are we actively accumulating.

◆ arg_names

std::vector<std::string> PLMD::gridtools::GridVessel::arg_names

protected

The names of the various columns in the grid file.

◆ bounds_set

bool PLMD::gridtools::GridVessel::bounds_set

private

Have the minimum and maximum for the grid been set.

◆ bufstart

unsigned PLMD::vesselbase::Vessel::bufstart

protectedinherited

The start of this Vessel's buffer in buffer in the underlying ActionWithVessel.

◆ comm

Communicator& PLMD::vesselbase::Vessel::comm

protectedinherited

A copy of the communicator.

◆ cube_units

double PLMD::gridtools::GridVessel::cube_units

private

Units for Gaussian Cube file.

◆ currentGridPoint

unsigned PLMD::gridtools::GridVessel::currentGridPoint

private

The grid point that was requested last by getGridPointCoordinates.

◆ dimension

unsigned PLMD::gridtools::GridVessel::dimension

protected

The dimensionality of the grid.

◆ dx

std::vector<double> PLMD::gridtools::GridVessel::dx

protected

The spacing between grid points.

◆ foundprint

bool PLMD::gridtools::GridVessel::foundprint

private

This flag is used to check if the user has created a valid input.

◆ log

Log& PLMD::vesselbase::Vessel::log

inherited

Reference to the log on which to output details.

◆ max

std::vector<double> PLMD::gridtools::GridVessel::max

private

◆ min

std::vector<double> PLMD::gridtools::GridVessel::min

private

The minimum and maximum of the grid stored as doubles.

◆ nbin

std::vector<unsigned> PLMD::gridtools::GridVessel::nbin

private

The number of bins in each grid direction.

◆ noderiv

bool PLMD::gridtools::GridVessel::noderiv

protected

Do we have derivatives.

◆ nper

unsigned PLMD::gridtools::GridVessel::nper

protected

The number of pieces of information we are storing for each point in the grid.

◆ npoints

unsigned PLMD::gridtools::GridVessel::npoints

private

The number of points in the grid.

◆ pbc

std::vector<bool> PLMD::gridtools::GridVessel::pbc

protected

Is this direction periodic.

◆ str_max

std::vector<std::string> PLMD::gridtools::GridVessel::str_max

protected

◆ str_min

std::vector<std::string> PLMD::gridtools::GridVessel::str_min

protected

The minimum and maximum in the grid stored as strings.

◆ stride

std::vector<unsigned> PLMD::gridtools::GridVessel::stride

private

The numerical distance between adjacent grid points.

The documentation for this class was generated from the following files:

gridtools/GridVessel.h
gridtools/GridVessel.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Private Attributes

Friends

Constructor & Destructor Documentation

◆ GridVessel()

Member Function Documentation

◆ activateThesePoints()

◆ addDataElement()

◆ addToGridElement()

◆ applyForce()

◆ calculate()

◆ checkRead()

◆ clear()

◆ convertIndexToIndices()

◆ description()

◆ error()

◆ finish()

◆ getAction()

◆ getAllInput()

◆ getCellVolume()

◆ getComponentName()

◆ getCubeUnits()

◆ getDataElement()

◆ getDimension()

◆ getGridElement() [1/2]

◆ getGridElement() [2/2]

◆ getGridExtent()

◆ getGridPointCoordinates()

◆ getGridSpacing()

◆ getIndex() [1/2]

◆ getIndex() [2/2]

◆ getIndices() [1/2]

◆ getIndices() [2/2]

◆ getInputString()

◆ getLabel()

◆ getMax()

◆ getMin()

◆ getName()

◆ getNbin()

◆ getNeighbors() [1/2]

◆ getNeighbors() [2/2]

◆ getNLTolerance()

◆ getNorm()

◆ getNumberOfBufferPoints()

◆ getNumberOfComponents()

◆ getNumberOfPoints()

◆ getNumberOfQuantities()

◆ getNumericalLabel()

◆ getSplineNeighbors()

◆ getStride()

◆ getTolerance()

◆ getValueAndDerivatives()

◆ inactive()

◆ isPeriodic()

◆ noAverage()

◆ noDerivatives()

◆ parse()

◆ parseFlag()

◆ parseVector()

◆ prepare()

◆ registerKeywords()

◆ reset()

◆ resize()

◆ resizeBuffer()

◆ setBounds()

◆ setBufferStart()

◆ setCubeUnits()

◆ setDataElement()

◆ setDataSize()

◆ setGridElement() [1/2]

◆ setGridElement() [2/2]

◆ setNoDerivatives()

◆ setNorm()

◆ transformDerivatives()

◆ transformName()

◆ wasreset()
