PLMD::function::Function Class Referenceabstract

#include <Function.h>

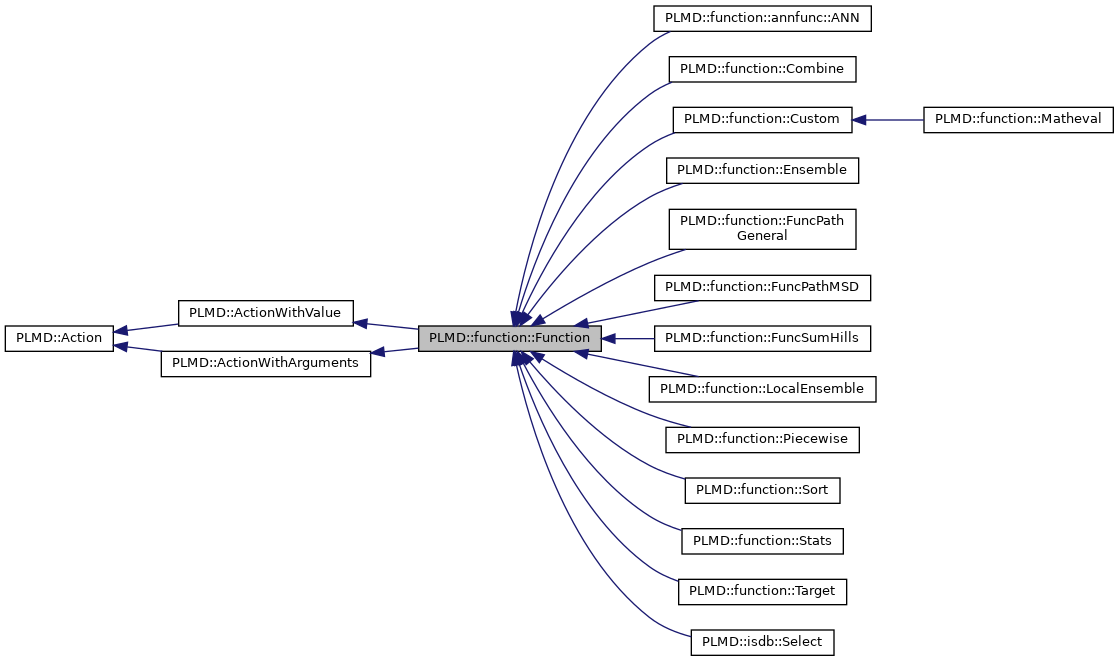

Inheritance diagram for PLMD::function::Function:
Inheritance graph
[legend]

Public Types

typedef std::vector< Action * > Dependencies


Public Member Functions

 Function (const ActionOptions &)

virtual ~Function ()

virtual void activate ()
 Set action to active. More...

void addComponent (const std::string &name)
 Add a value with a name like label.name. More...

void addDependency (Action *)
 Specify that this Action depends on another one. More...

void addForcesOnArguments (const std::vector< double > &forces)
 Add forces to arguments (used in apply) More...

void addValue ()
 Add a value with the name label. More...

void apply () override
 Apply an Action. More...

virtual void beforeUpdate ()
 Before Update. More...

double bringBackInPbc (int i, double d1) const
 Takes one value and brings it back into the pbc of argument i. More...

virtual void calculate ()=0
 Calculate an Action. More...

void calculateFromPDB (const PDB &)
 Calculate the action given a pdb file as input. More...

virtual void calculateNumericalDerivatives (ActionWithValue *a=NULL)
 Perform calculation using numerical derivatives N.B. More...

void calculateNumericalDerivatives (ActionWithValue *a=NULL) override
 Calculate the numerical derivatives N.B. More...

virtual void checkFieldsAllowed ()

virtual bool checkNeedsGradients () const
 Check if the action needs gradient. More...

bool checkNumericalDerivatives () const override
 Check if numerical derivatives should be used. More...

void checkRead ()
 Check if Action was properly read. More...

bool checkUpdate () const
 Check if action should be updated. More...

std::string cite (const std::string &s)
 Cite a paper see PlumedMain::cite. More...

void clearDependencies ()
 Clear the dependence list for this Action. More...

virtual void clearDerivatives ()
 Clear the derivatives of values wrt parameters. More...

void clearInputForces ()
 Clear the forces on the values. More...

virtual void clearOptions ()

void componentIsNotPeriodic (const std::string &name)
 Set your value component to have no periodicity. More...

void componentIsPeriodic (const std::string &name, const std::string &min, const std::string &max)
 Set the value to be periodic with a particular domain. More...

ValuecopyOutput (const std::string &name) const
 Return a pointer to the value with name (this is used to retrieve values in other PLMD::Actions) You should NEVER use this routine to refer to the components of your PLMD::Action. More...

ValuecopyOutput (const unsigned &n) const
 Return a pointer to the value with this number (this is used to retrieve values in other PLMD::Actions) You should NEVER use this routine to refer to the components of your PLMD::Action. More...

virtual void deactivate ()
 Set action to inactive. More...

double difference (int, double, double) const
 Takes the difference taking into account pbc for arg i. More...

virtual bool doNotCalculateDerivatives () const
 Are we not calculating derivatives. More...

void error (const std::string &msg) const
 Crash calculation and print documentation. More...

bool exists (const std::string &name) const
 Check if a value with a particular name is present. More...

void exit (int c=0)
 Exit with error code c. More...

int fclose (FILE *fp)
 Closes a file opened with Action::fclose(). More...

void fflush ()
 Tell to the Action to flush open files. More...

FILE * fopen (const char *path, const char *mode)
 Opens a file. More...

double getArgument (const unsigned n) const
 Returns the value of an argument. More...

virtual const std::vector< Value * > & getArguments () const
 Returns an array of pointers to the arguments. More...

std::string getComponentsList () const
 get a string that contains all the available components More...

std::vector< std::string > getComponentsVector () const
 get a vector that contains the label for all the components More...

bool getCPT () const
 Return true if we are doing at a checkpoint step. More...

const DependenciesgetDependencies () const
 Return dependencies. More...

virtual std::string getDocumentation () const

bool getExchangeStep () const
 Check if we are on an exchange step. More...

std::string getKeyword (const std::string &key)
 Just read one of the keywords and return the whole thing as a string. More...

const std::string & getLabel () const
 Returns the label. More...

const std::string & getName () const
 Returns the name. More...

virtual unsigned getNumberOfArguments () const
 Returns the number of arguments. More...

int getNumberOfComponents () const
 Returns the number of values defined. More...

unsigned getNumberOfDerivatives () override

double getOutputQuantity (const std::string &name) const
 Get the value with a specific name (N.B. if there is no such value this returns zero) More...

double getOutputQuantity (const unsigned j) const
 Get the value of one of the components of the PLMD::Action. More...

ValuegetPntrToArgument (const unsigned n)
 Return a pointer to specific argument. More...

double getProjection (unsigned i, unsigned j) const
 Get the scalar product between the gradients of two variables. More...

bool getRestart () const
 Return true if we are doing a restart. More...

long int getStep () const
 Return the present timestep. More...

double getTime () const
 Return the present time. More...

double getTimeStep () const
 Return the timestep. More...

void interpretArgumentList (const std::vector< std::string > &c, std::vector< Value * > &arg)
 Convert a list of argument names into a list of pointers to the values. More...

bool isActive () const
 Check if action is active. More...

bool isOptionOn (const std::string &s) const
 Check if an option is on. More...

virtual void lockRequests ()

void lockRequests () override

template<class T >
void parse (const std::string &key, T &t)
 Parse one keyword as generic type. More...

bool parseArgumentList (const std::string &key, int i, std::vector< Value * > &args)
 Parse a numbered list of arguments. More...

void parseArgumentList (const std::string &key, std::vector< Value * > &args)
 Parse a list of arguments. More...

void parseFlag (const std::string &key, bool &t)
 Parse one keyword as boolean flag. More...

template<class T >
bool parseNumbered (const std::string &key, const int no, T &t)
 Parse one numbered keyword as generic type. More...

template<class T >
bool parseNumberedVector (const std::string &key, const int no, std::vector< T > &t)
 Parse a vector with a number. More...

template<class T >
void parseVector (const std::string &key, std::vector< T > &t)
 Parse one keyword as std::vector. More...

virtual void prepare ()
 Prepare an Action for calculation This can be used by Action if they need some special preparation before calculation. More...

virtual void readAtomsFromPDB (const PDB &)
 This is overwritten in ActionAtomistic so that we can read the atoms from the pdb input file rather than taking them from the MD code. More...

void requestArguments (const std::vector< Value * > &arg)
 Setup the dependencies. More...

void requestExtraDependencies (const std::vector< Value * > &extra)

virtual void runFinalJobs ()
 RunFinalJobs This method is called once at the very end of the calculation. More...

void setGradientsIfNeeded ()
 Calculate the gradients and store them for all the values (need for projections) More...

void setNotPeriodic ()
 Set your default value to have no periodicity. More...

virtual void setOption (const std::string &s)

void setPeriodic (const std::string &min, const std::string &max)
 Set the value to be periodic with a particular domain. More...

void setValue (Value *, double)
 Set the value. More...

virtual void turnOnDerivatives ()
 Activate the calculation of derivatives. More...

virtual void unlockRequests ()

void unlockRequests () override

virtual void update ()
 Update. More...

void useNumericalDerivatives ()
 This forces the class to use numerical derivatives. More...

void warning (const std::string &msg)
 Issue a warning. More...


Static Public Member Functions

static void componentsAreNotOptional (Keywords &keys)
 Puts a message into the manual that the components always output. More...

static void noAnalyticalDerivatives (Keywords &keys)
 Insist that numerical derivatives should always be used for an action and make this fact appear in the manual. More...

static void registerKeywords (Keywords &)

static void useCustomisableComponents (Keywords &keys)
 The components in the action will depend on the user. More...


Public Attributes

Communicatorcomm

std::set< FILE * > files

const Keywordskeywords

Loglog
 Reference to the log stream. More...

Communicatormulti_sim_comm

PlumedMainplumed
 Reference to main plumed object. More...


Protected Member Functions

void addComponentWithDerivatives (const std::string &name)

void addValueWithDerivatives ()

void expandArgKeywordInPDB (const PDB &pdb)
 This changes the arg keyword in the pdb file. More...

ValuegetPntrToComponent (const std::string &name)
 Return a pointer to the value by name. More...

ValuegetPntrToComponent (int i)
 Return a pointer to the component by index. More...

ValuegetPntrToValue ()
 Get a pointer to the default value. More...

void setDerivative (int, double)

void setDerivative (Value *, int, double)

void setValue (const double &d)
 Set the default value (the one without name) More...


Private Member Functions

int getComponent (const std::string &name) const
 Return the index for the component named name. More...


Private Attributes

bool active
 Switch to activate Action on this step. More...

Dependencies after
 Actions on which this Action depends. More...

std::vector< Value * > arguments

bool doCheckPoint

std::string label
 Label of the Action, as set with LABEL= in the plumed.dat file. More...

std::vector< std::string > line
 Directive line. More...

bool lockRequestArguments

const std::string name
 Name of the directive in the plumed.dat file. More...

bool noderiv
 Are we skipping the calculation of the derivatives. More...

bool numericalDerivatives
 Are we using numerical derivatives to differentiate. More...

std::set< std::string > options
 Option that you might have enabled. More...

int replica_index

bool restart

double update_from
 Update only after this time. More...

double update_until
 Update only until this time. More...

std::vector< std::unique_ptr< Value > > values
 An array containing the values for this action. More...


Detailed Description

This is the abstract base class to use for implementing new CV function, within it there is information as to how to go about implementing a new function.

Member Typedef Documentation

◆ Dependencies

typedef std::vector<Action*> PLMD::Action::Dependencies
inherited

Constructor & Destructor Documentation

◆ Function()

PLMD::function::Function::Function ( const ActionOptions ao)
explicit

◆ ~Function()

virtual PLMD::function::Function::~Function ( )
inlinevirtual

Member Function Documentation

◆ activate()

void PLMD::Action::activate ( )
virtualinherited

Set action to active.

◆ addComponent()

void PLMD::ActionWithValue::addComponent ( const std::string &  name)
inherited

Add a value with a name like label.name.

◆ addComponentWithDerivatives()

void PLMD::function::Function::addComponentWithDerivatives ( const std::string &  name)
protected

◆ addDependency()

void PLMD::Action::addDependency ( Action action)
inherited

Specify that this Action depends on another one.

◆ addForcesOnArguments()

void PLMD::ActionWithArguments::addForcesOnArguments ( const std::vector< double > &  forces)
inherited

Add forces to arguments (used in apply)

◆ addValue()

void PLMD::ActionWithValue::addValue ( )
inherited

Add a value with the name label.

◆ addValueWithDerivatives()

void PLMD::function::Function::addValueWithDerivatives ( )
protected

◆ apply()

void PLMD::function::Function::apply ( )
overridevirtual

Apply an Action.

This method is called one time per step. The set of all Actions is applied in backward order.

Implements PLMD::Action.

◆ beforeUpdate()

virtual void PLMD::Action::beforeUpdate ( )
inlinevirtualinherited

Before Update.

This is a special method that is called just before the update() method. It can be used by actions that want to do something irrespectively of the fact that update() is active or not. In other words, this is always called, even when action is not active.

Reimplemented in PLMD::generic::UpdateIf.

◆ bringBackInPbc()

double PLMD::ActionWithArguments::bringBackInPbc ( int  i,
double  d1
) const
inlineinherited

Takes one value and brings it back into the pbc of argument i.

◆ calculate()

virtual void PLMD::Action::calculate ( )
pure virtualinherited

Calculate an Action.

This method is called one or more times per step. The set of all Actions is calculated in forward order.

Implemented in PLMD::bias::MetaD, PLMD::isdb::CS2Backbone, PLMD::bias::PBMetaD, PLMD::ves::VesLinearExpansion, PLMD::isdb::EMMI, PLMD::isdb::Metainference, PLMD::opes::OPESmetad< mode >, PLMD::isdb::RDC, PLMD::function::FuncPathMSD, PLMD::generic::FitToTemplate, PLMD::function::FuncSumHills, PLMD::mapping::PCAVars, PLMD::ves::Optimizer, PLMD::ves::BasisFunctions, PLMD::ves::TargetDistribution, PLMD::function::Custom, PLMD::ves::VesDeltaF, PLMD::opes::OPESexpanded, PLMD::multicolvar::MultiColvarBase, PLMD::generic::Plumed, PLMD::generic::WrapAround, PLMD::generic::Include, PLMD::bias::MaxEnt, PLMD::generic::Group, PLMD::generic::DumpAtoms, PLMD::isdb::SAXS, PLMD::vatom::Center, PLMD::colvar::Dimer, PLMD::bias::ExtendedLagrangian, PLMD::colvar::DRMSD, PLMD::bias::External, PLMD::generic::EffectiveEnergyDrift, PLMD::colvar::Distance, PLMD::colvar::ContactMap, PLMD::generic::WholeMolecules, PLMD::bias::MovingRestraint, PLMD::colvar::ERMSD, PLMD::mapping::AdaptivePath, PLMD::ves::OutputFesBias, PLMD::function::Target, PLMD::adjmat::Sprint, PLMD::generic::ResetCell, PLMD::isdb::JCoupling, PLMD::generic::Read, PLMD::colvar::EEFSolv, PLMD::analysis::Average, PLMD::analysis::AnalysisBase, PLMD::colvar::Torsion, PLMD::multicolvar::CenterOfMultiColvar, PLMD::vatom::FixedAtom, PLMD::colvar::PathMSDBase, PLMD::bias::ABMD, PLMD::generic::DumpMassCharge, PLMD::multicolvar::DistanceFromContour, PLMD::isdb::FretEfficiency, PLMD::ves::OutputBasisFunctions, PLMD::colvar::Gyration, PLMD::generic::UpdateIf, PLMD::colvar::Angle, PLMD::generic::Print, PLMD::ves::OutputTargetDistribution, PLMD::function::Combine, PLMD::isdb::PRE, PLMD::adjmat::OutputCluster, PLMD::function::LocalEnsemble, PLMD::colvar::Position, PLMD::secondarystructure::SecondaryStructureRMSD, PLMD::generic::RandomExchanges, PLMD::adjmat::ClusterDistribution, PLMD::bias::BiasValue, PLMD::isdb::NOE, PLMD::multicolvar::DumpMultiColvar, PLMD::maze::Loss, PLMD::colvar::Puckering, PLMD::function::Piecewise, PLMD::adjmat::ClusterDiameter, PLMD::analysis::Committor, PLMD::adjmat::ClusterSize, PLMD::bias::LWalls, PLMD::bias::UWalls, PLMD::adjmat::ClusterProperties, PLMD::colvar::Energy, PLMD::generic::Flush, PLMD::isdb::Selector, PLMD::colvar::Dipole, PLMD::multicolvar::BridgedMultiColvarFunction, PLMD::bias::Restraint, PLMD::function::Ensemble, PLMD::colvar::Constant, PLMD::function::Stats, PLMD::generic::DumpDerivatives, PLMD::GenericMolInfo, PLMD::generic::DumpForces, PLMD::generic::EndPlumed, PLMD::manyrestraints::ManyRestraintsBase, PLMD::colvar::ExtraCV, PLMD::function::Sort, PLMD::generic::Debug, PLMD::generic::DumpProjections, PLMD::vatom::Ghost, PLMD::adjmat::DumpGraph, PLMD::colvar::Template, PLMD::colvar::Cell, PLMD::opes::ExpansionCVs, PLMD::gridtools::ActionWithGrid, PLMD::adjmat::ClusteringBase, PLMD::colvar::Volume, PLMD::generic::Time, PLMD::colvar::ColvarFake, PLMD::ActionShortcut, PLMD::colvar::CoordinationBase, PLMD::bias::ReweightBase, PLMD::colvar::MultiRMSD, PLMD::colvar::PCARMSD, PLMD::colvar::RMSD, PLMD::ActionAnyorder, PLMD::ActionSetup, PLMD::gridtools::GridPrintingBase, PLMD::mapping::PathBase, PLMD::logmfd::LogMFD, PLMD::eds::EDS, PLMD::piv::PIV, PLMD::fisst::FISST, PLMD::sasa::SASA_HASEL, PLMD::sasa::SASA_LCPO, PLMD::isdb::Rescale, PLMD::maze::OptimizerBias, PLMD::funnel::Funnel, PLMD::function::FuncPathGeneral, PLMD::funnel::FUNNEL_PS, PLMD::function::annfunc::ANN, PLMD::isdb::Caliber, PLMD::maze::Optimizer, PLMD::colvar::ProjectionOnAxis, PLMD::s2cm::S2ContactModel, and PLMD::isdb::Select.

◆ calculateFromPDB()

void PLMD::Action::calculateFromPDB ( const PDB pdb)
inherited

Calculate the action given a pdb file as input.

This is used to initialize things like distance from a point in CV map space given a pdb as an input file

◆ calculateNumericalDerivatives() [1/2]

void PLMD::Action::calculateNumericalDerivatives ( ActionWithValue a = NULL)
virtualinherited

◆ calculateNumericalDerivatives() [2/2]

void PLMD::ActionWithArguments::calculateNumericalDerivatives ( ActionWithValue a = NULL)
overridevirtualinherited

Calculate the numerical derivatives N.B.

only pass an ActionWithValue to this routine if you know exactly what you are doing. The default will be correct for the vast majority of cases

Reimplemented from PLMD::Action.

Reimplemented in PLMD::vesselbase::ActionWithAveraging, PLMD::mapping::Mapping, PLMD::isdb::EMMI, PLMD::isdb::MetainferenceBase, and PLMD::mapping::PCAVars.

◆ checkFieldsAllowed()

virtual void PLMD::ActionWithValue::checkFieldsAllowed ( )
inlinevirtualinherited

Reimplemented in PLMD::colvar::ContactMap, and PLMD::piv::PIV.

◆ checkNeedsGradients()

virtual bool PLMD::Action::checkNeedsGradients ( ) const
inlinevirtualinherited

Check if the action needs gradient.

Reimplemented in PLMD::bias::MetaD, PLMD::bias::PBMetaD, and PLMD::generic::DumpProjections.

◆ checkNumericalDerivatives()

bool PLMD::ActionWithValue::checkNumericalDerivatives ( ) const
inlineoverridevirtualinherited

Check if numerical derivatives should be used.

Reimplemented from PLMD::Action.

◆ checkRead()

void PLMD::Action::checkRead ( )
inherited

Check if Action was properly read.

This checks if Action::line is empty. It must be called after a final Action has been initialized

◆ checkUpdate()

bool PLMD::Action::checkUpdate ( ) const
inherited

Check if action should be updated.

◆ cite()

std::string PLMD::Action::cite ( const std::string &  s)
inherited

Cite a paper see PlumedMain::cite.

◆ clearDependencies()

void PLMD::Action::clearDependencies ( )
inherited

Clear the dependence list for this Action.

◆ clearDerivatives()

void PLMD::ActionWithValue::clearDerivatives ( )
virtualinherited

Clear the derivatives of values wrt parameters.

Reimplemented in PLMD::multicolvar::BridgedMultiColvarFunction, and PLMD::manyrestraints::ManyRestraintsBase.

◆ clearInputForces()

void PLMD::ActionWithValue::clearInputForces ( )
inherited

Clear the forces on the values.

◆ clearOptions()

void PLMD::Action::clearOptions ( )
virtualinherited

◆ componentIsNotPeriodic()

void PLMD::ActionWithValue::componentIsNotPeriodic ( const std::string &  name)
inherited

Set your value component to have no periodicity.

◆ componentIsPeriodic()

void PLMD::ActionWithValue::componentIsPeriodic ( const std::string &  name,
const std::string &  min,
const std::string &  max
)
inherited

Set the value to be periodic with a particular domain.

◆ componentsAreNotOptional()

void PLMD::ActionWithValue::componentsAreNotOptional ( Keywords keys)
staticinherited

Puts a message into the manual that the components always output.

◆ copyOutput() [1/2]

Value * PLMD::ActionWithValue::copyOutput ( const std::string &  name) const
inherited

Return a pointer to the value with name (this is used to retrieve values in other PLMD::Actions) You should NEVER use this routine to refer to the components of your PLMD::Action.

Use getPntrToComponent instead.

◆ copyOutput() [2/2]

Value * PLMD::ActionWithValue::copyOutput ( const unsigned &  n) const
inherited

Return a pointer to the value with this number (this is used to retrieve values in other PLMD::Actions) You should NEVER use this routine to refer to the components of your PLMD::Action.

Use getPntrToComponent instead.

◆ deactivate()

void PLMD::Action::deactivate ( )
inlinevirtualinherited

Set action to inactive.

◆ difference()

double PLMD::ActionWithArguments::difference ( int  i,
double  d1,
double  d2
) const
inlineinherited

Takes the difference taking into account pbc for arg i.

◆ doNotCalculateDerivatives()

bool PLMD::ActionWithValue::doNotCalculateDerivatives ( ) const
inlinevirtualinherited

Are we not calculating derivatives.

Reimplemented in PLMD::multicolvar::MultiColvarBase.

◆ error()

void PLMD::Action::error ( const std::string &  msg) const
inherited

Crash calculation and print documentation.

◆ exists()

bool PLMD::ActionWithValue::exists ( const std::string &  name) const
inherited

Check if a value with a particular name is present.

This is only used in PLMD::ActionWithArguments. You should not use it when manipulating components.

◆ exit()

void PLMD::Action::exit ( int  c = 0)
inherited

Exit with error code c.

◆ expandArgKeywordInPDB()

void PLMD::ActionWithArguments::expandArgKeywordInPDB ( const PDB pdb)
protectedinherited

This changes the arg keyword in the pdb file.

◆ fclose()

int PLMD::Action::fclose ( FILE *  fp)
inherited

Closes a file opened with Action::fclose().

◆ fflush()

void PLMD::Action::fflush ( )
inherited

Tell to the Action to flush open files.

◆ fopen()

FILE * PLMD::Action::fopen ( const char *  path,
const char *  mode
)
inherited

Opens a file.

This is similar to plain fopen, but with some extra functionality.

  • When opened for writing, processors other than the one with rank 0 just open /dev/null
  • PlumedMain::fopen is used, so that other tricks may appear (see PlumedMain::fopen)

◆ getArgument()

double PLMD::ActionWithArguments::getArgument ( const unsigned  n) const
inlineinherited

Returns the value of an argument.

◆ getArguments()

const std::vector< Value * > & PLMD::ActionWithArguments::getArguments ( ) const
inlinevirtualinherited

Returns an array of pointers to the arguments.

◆ getComponent()

int PLMD::ActionWithValue::getComponent ( const std::string &  name) const
privateinherited

Return the index for the component named name.

◆ getComponentsList()

std::string PLMD::ActionWithValue::getComponentsList ( ) const
inherited

get a string that contains all the available components

◆ getComponentsVector()

std::vector< std::string > PLMD::ActionWithValue::getComponentsVector ( ) const
inherited

get a vector that contains the label for all the components

◆ getCPT()

bool PLMD::Action::getCPT ( ) const
inherited

Return true if we are doing at a checkpoint step.

◆ getDependencies()

const Dependencies& PLMD::Action::getDependencies ( ) const
inlineinherited

Return dependencies.

◆ getDocumentation()

std::string PLMD::Action::getDocumentation ( ) const
virtualinherited

◆ getExchangeStep()

bool PLMD::Action::getExchangeStep ( ) const
inherited

Check if we are on an exchange step.

◆ getKeyword()

std::string PLMD::Action::getKeyword ( const std::string &  key)
inherited

Just read one of the keywords and return the whole thing as a string.

◆ getLabel()

const std::string & PLMD::Action::getLabel ( ) const
inlineinherited

Returns the label.

◆ getName()

const std::string & PLMD::Action::getName ( ) const
inlineinherited

Returns the name.

◆ getNumberOfArguments()

unsigned PLMD::ActionWithArguments::getNumberOfArguments ( ) const
inlinevirtualinherited

Returns the number of arguments.

Reimplemented in PLMD::vesselbase::ActionWithAveraging.

◆ getNumberOfComponents()

int PLMD::ActionWithValue::getNumberOfComponents ( ) const
inlineinherited

Returns the number of values defined.

◆ getNumberOfDerivatives()

unsigned PLMD::function::Function::getNumberOfDerivatives ( )
inlineoverridevirtual

Implements PLMD::ActionWithValue.

◆ getOutputQuantity() [1/2]

double PLMD::ActionWithValue::getOutputQuantity ( const std::string &  name) const
inlineinherited

Get the value with a specific name (N.B. if there is no such value this returns zero)

◆ getOutputQuantity() [2/2]

double PLMD::ActionWithValue::getOutputQuantity ( const unsigned  j) const
inlineinherited

Get the value of one of the components of the PLMD::Action.

◆ getPntrToArgument()

Value * PLMD::ActionWithArguments::getPntrToArgument ( const unsigned  n)
inlineinherited

Return a pointer to specific argument.

◆ getPntrToComponent() [1/2]

Value * PLMD::ActionWithValue::getPntrToComponent ( const std::string &  name)
protectedinherited

Return a pointer to the value by name.

◆ getPntrToComponent() [2/2]

Value * PLMD::ActionWithValue::getPntrToComponent ( int  i)
protectedinherited

Return a pointer to the component by index.

◆ getPntrToValue()

Value * PLMD::ActionWithValue::getPntrToValue ( )
protectedinherited

Get a pointer to the default value.

◆ getProjection()

double PLMD::ActionWithArguments::getProjection ( unsigned  i,
unsigned  j
) const
inherited

Get the scalar product between the gradients of two variables.

◆ getRestart()

bool PLMD::Action::getRestart ( ) const
inlineinherited

Return true if we are doing a restart.

◆ getStep()

long int PLMD::Action::getStep ( ) const
inherited

Return the present timestep.

◆ getTime()

double PLMD::Action::getTime ( ) const
inherited

Return the present time.

◆ getTimeStep()

double PLMD::Action::getTimeStep ( ) const
inherited

Return the timestep.

◆ interpretArgumentList()

void PLMD::ActionWithArguments::interpretArgumentList ( const std::vector< std::string > &  c,
std::vector< Value * > &  arg
)
inherited

Convert a list of argument names into a list of pointers to the values.

◆ isActive()

bool PLMD::Action::isActive ( ) const
inlineinherited

Check if action is active.

◆ isOptionOn()

bool PLMD::Action::isOptionOn ( const std::string &  s) const
inlineinherited

Check if an option is on.

◆ lockRequests() [1/2]

virtual void PLMD::Action::lockRequests ( )
inlinevirtualinherited

◆ lockRequests() [2/2]

void PLMD::ActionWithArguments::lockRequests ( )
inlineoverridevirtualinherited

◆ noAnalyticalDerivatives()

void PLMD::ActionWithValue::noAnalyticalDerivatives ( Keywords keys)
staticinherited

Insist that numerical derivatives should always be used for an action and make this fact appear in the manual.

◆ parse()

template<class T >
void PLMD::Action::parse ( const std::string &  key,
T &  t
)
inherited

Parse one keyword as generic type.

◆ parseArgumentList() [1/2]

bool PLMD::ActionWithArguments::parseArgumentList ( const std::string &  key,
int  i,
std::vector< Value * > &  args
)
inherited

Parse a numbered list of arguments.

◆ parseArgumentList() [2/2]

void PLMD::ActionWithArguments::parseArgumentList ( const std::string &  key,
std::vector< Value * > &  args
)
inherited

Parse a list of arguments.

◆ parseFlag()

void PLMD::Action::parseFlag ( const std::string &  key,
bool &  t
)
inherited

Parse one keyword as boolean flag.

◆ parseNumbered()

template<class T >
bool PLMD::Action::parseNumbered ( const std::string &  key,
const int  no,
T &  t
)
inherited

Parse one numbered keyword as generic type.

◆ parseNumberedVector()

template<class T >
bool PLMD::Action::parseNumberedVector ( const std::string &  key,
const int  no,
std::vector< T > &  t
)
inherited

Parse a vector with a number.

◆ parseVector()

template<class T >
void PLMD::Action::parseVector ( const std::string &  key,
std::vector< T > &  t
)
inherited

Parse one keyword as std::vector.

◆ prepare()

void PLMD::Action::prepare ( )
virtualinherited

Prepare an Action for calculation This can be used by Action if they need some special preparation before calculation.

Typical case is for collective variables which would like to change their list of requested atoms. By default (if not overridden) does nothing.

Reimplemented in PLMD::isdb::EMMI, PLMD::function::FuncPathMSD, PLMD::generic::Plumed, PLMD::multicolvar::MultiColvarBase, PLMD::generic::Read, PLMD::generic::DumpMassCharge, PLMD::generic::UpdateIf, PLMD::generic::Print, PLMD::GenericMolInfo, PLMD::gridtools::ConvertToFES, PLMD::colvar::Energy, PLMD::colvar::ExtraCV, PLMD::colvar::CoordinationBase, PLMD::function::FuncPathGeneral, PLMD::maze::Optimizer, and PLMD::s2cm::S2ContactModel.

◆ readAtomsFromPDB()

virtual void PLMD::Action::readAtomsFromPDB ( const PDB )
inlinevirtualinherited

This is overwritten in ActionAtomistic so that we can read the atoms from the pdb input file rather than taking them from the MD code.

Reimplemented in PLMD::ActionAtomistic.

◆ registerKeywords()

void PLMD::function::Function::registerKeywords ( Keywords keys)
static

◆ requestArguments()

void PLMD::ActionWithArguments::requestArguments ( const std::vector< Value * > &  arg)
inherited

Setup the dependencies.

◆ requestExtraDependencies()

void PLMD::ActionWithArguments::requestExtraDependencies ( const std::vector< Value * > &  extra)
inherited

◆ runFinalJobs()

virtual void PLMD::Action::runFinalJobs ( )
inlinevirtualinherited

RunFinalJobs This method is called once at the very end of the calculation.

The set of all Actions in run for the final time in forward order.

Reimplemented in PLMD::vesselbase::ActionWithAveraging, PLMD::analysis::AnalysisBase, PLMD::gridtools::ConvertToFES, PLMD::analysis::ReadDissimilarityMatrix, and PLMD::gridtools::GridPrintingBase.

◆ setDerivative() [1/2]

void PLMD::function::Function::setDerivative ( int  i,
double  d
)
inlineprotected

◆ setDerivative() [2/2]

void PLMD::function::Function::setDerivative ( Value v,
int  i,
double  d
)
inlineprotected

◆ setGradientsIfNeeded()

void PLMD::ActionWithValue::setGradientsIfNeeded ( )
inherited

Calculate the gradients and store them for all the values (need for projections)

◆ setNotPeriodic()

void PLMD::ActionWithValue::setNotPeriodic ( )
inherited

Set your default value to have no periodicity.

◆ setOption()

void PLMD::Action::setOption ( const std::string &  s)
virtualinherited

◆ setPeriodic()

void PLMD::ActionWithValue::setPeriodic ( const std::string &  min,
const std::string &  max
)
inherited

Set the value to be periodic with a particular domain.

◆ setValue() [1/2]

void PLMD::ActionWithValue::setValue ( const double &  d)
inlineprotectedinherited

Set the default value (the one without name)

◆ setValue() [2/2]

void PLMD::ActionWithValue::setValue ( Value ,
double
)
inherited

Set the value.

◆ turnOnDerivatives()

void PLMD::ActionWithValue::turnOnDerivatives ( )
virtualinherited

◆ unlockRequests() [1/2]

virtual void PLMD::Action::unlockRequests ( )
inlinevirtualinherited

◆ unlockRequests() [2/2]

void PLMD::ActionWithArguments::unlockRequests ( )
inlineoverridevirtualinherited

◆ update()

virtual void PLMD::Action::update ( )
inlinevirtualinherited

◆ useCustomisableComponents()

void PLMD::ActionWithValue::useCustomisableComponents ( Keywords keys)
staticinherited

The components in the action will depend on the user.

◆ useNumericalDerivatives()

void PLMD::ActionWithValue::useNumericalDerivatives ( )
inlineinherited

This forces the class to use numerical derivatives.

◆ warning()

void PLMD::Action::warning ( const std::string &  msg)
inherited

Issue a warning.

Member Data Documentation

◆ active

bool PLMD::Action::active
privateinherited

Switch to activate Action on this step.

◆ after

Dependencies PLMD::Action::after
privateinherited

Actions on which this Action depends.

◆ arguments

std::vector<Value*> PLMD::ActionWithArguments::arguments
privateinherited

◆ comm

Communicator& PLMD::Action::comm
inherited

◆ doCheckPoint

bool PLMD::Action::doCheckPoint
privateinherited

◆ files

std::set<FILE*> PLMD::Action::files
inherited

◆ keywords

const Keywords& PLMD::Action::keywords
inherited

◆ label

std::string PLMD::Action::label
privateinherited

Label of the Action, as set with LABEL= in the plumed.dat file.

◆ line

std::vector<std::string> PLMD::Action::line
privateinherited

Directive line.

This line is progressively erased during Action construction so as to check if all the present keywords are correct.

◆ lockRequestArguments

bool PLMD::ActionWithArguments::lockRequestArguments
privateinherited

◆ log

Log& PLMD::Action::log
inherited

Reference to the log stream.

◆ multi_sim_comm

Communicator& PLMD::Action::multi_sim_comm
inherited

◆ name

const std::string PLMD::Action::name
privateinherited

Name of the directive in the plumed.dat file.

◆ noderiv

bool PLMD::ActionWithValue::noderiv
privateinherited

Are we skipping the calculation of the derivatives.

◆ numericalDerivatives

bool PLMD::ActionWithValue::numericalDerivatives
privateinherited

Are we using numerical derivatives to differentiate.

◆ options

std::set<std::string> PLMD::Action::options
privateinherited

Option that you might have enabled.

◆ plumed

PlumedMain& PLMD::Action::plumed
inherited

Reference to main plumed object.

◆ replica_index

int PLMD::Action::replica_index
privateinherited

◆ restart

bool PLMD::Action::restart
privateinherited

◆ update_from

double PLMD::Action::update_from
privateinherited

Update only after this time.

◆ update_until

double PLMD::Action::update_until
privateinherited

Update only until this time.

◆ values

std::vector<std::unique_ptr<Value> > PLMD::ActionWithValue::values
privateinherited

An array containing the values for this action.


The documentation for this class was generated from the following files:
